Brunel SP52 Trinocular

SP52 Microscope

Achromatic Objectives

Carrying Case

x15 widefield eyepieces (pair) SP52-01	£46.67	Measuring eyepiece SP52-6	£29.17
x20 widefield eyepieces (pair) SP52-02	£46.67	Polariser/Analyser SP52-7	£49.50
x20 objective SP52-03	£26.67	Attache case SP52-8	£40.00
x60 objective SP52-04	£28.33	SLR Photography adapter SP52-9	£25.00
Stage micrometer SP52-05	£31.67	Photoeyepiece (for above) SP52-10	£26.67
		T2 Ring (for above) state camera make SP-52-11	£13.33

SP52 Microscope Accessories

The SP52 microscope has a range of accessories available from our online shop.

Biological Microscopes

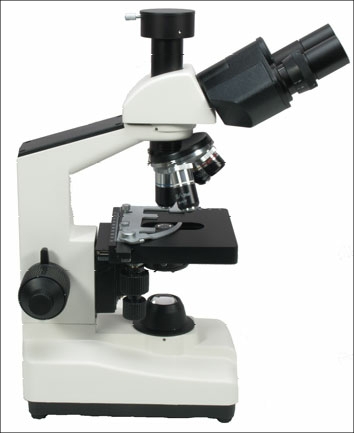

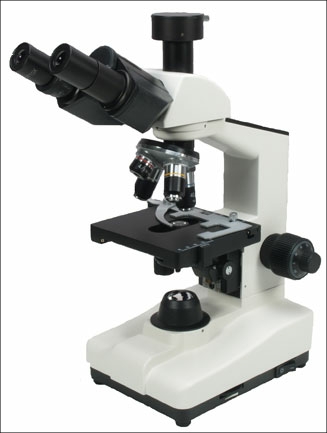

The Brunel SP52 is probably pound for pound the best value compound microscope in our range. This instrument bridges the gap between microscopes best suited for amateur and professional use. Standard features include a quadruple nosepiece turret with achromatic objectives x4, x10, x40 and x100 (oil). Matched with x10 wide field eyepieces gives the SP52 a magnification range of x40 to x1000. The SP52 has a coaxial coarse and fine focus mechanism, with tension control and focus stop. This is a good sized microscope with a robust stand well suited for the rigours of educational use or commercial applications whilst being ideal for the serious amateur microscopist. It also has the additional features of an adjustable focus stop and tension arrangement

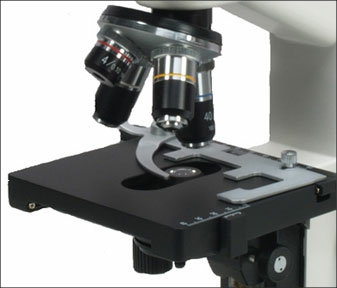

The SP52 trinocular is a modern microscope with an LED light source with rheostat brightness control. The good size mechanical stage has drop down coaxial controls with a double vernier scale location system.

The SP52 has a full substage which includes an Abbe condenser with an independent focus control (N.A. 1.25) with lateral adjustment, iris diaphragm and filter carrier. DIN standard parfocal objectives. The high power objectives have retractable front lenses for slide safety.

Accessories include an aluminium framed pilot style carrying case.

SP52 Price £398.33 + vat
