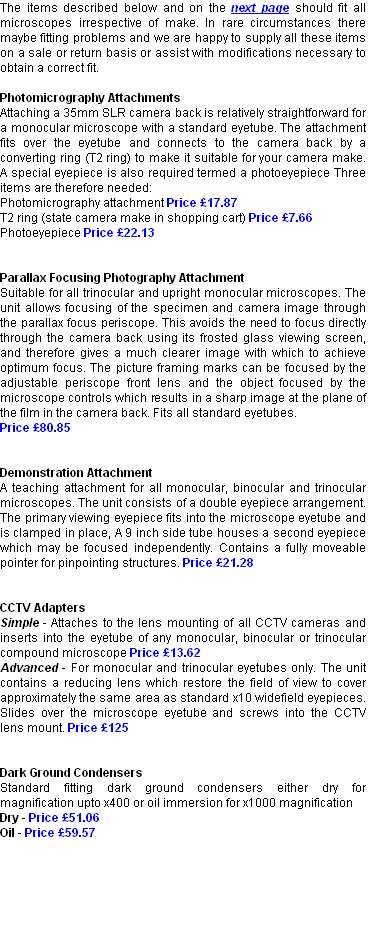

Universal Accessories
The items described below and on the next page should fit all microscopes irrespective of make. In rare circumstances there maybe fitting problems and we are happy to supply all these items on a sale or return basis or assist with modifications necessary to obtain a correct fit.
Photomicrography Attachments
Attaching a 35mm SLR camera back is relatively straightforward for a monocular microscope with a standard eyetube. The attachment fits over the eyetube and connects to the camera back by a converting ring (T2 ring) to make it suitable for your camera make. A special eyepiece is also required termed a photoeyepiece Three items are therefore needed:
Photomicrography attachment Price £17.87
T2 ring (state camera make in shopping cart) Price £7.66
Photoeyepiece Price £22.13
Parallax Focusing Photography Attachment
Suitable for all trinocular and upright monocular microscopes. The unit allows focusing of the specimen and camera image through the parallax focus periscope. This avoids the need to focus directly through the camera back using its frosted glass viewing screen, and therefore gives a much clearer image with which to achieve optimum focus. The picture framing marks can be focused by the adjustable periscope front lens and the object focused by the microscope controls which results in a sharp image at the plane of the film in the camera back. Fits all standard eyetubes.
Price £80.85
Demonstration Attachment
A teaching attachment for all monocular, binocular and trinocular microscopes. The unit consists of a double eyepiece arrangement. The primary viewing eyepiece fits into the microscope eyetube and is clamped in place, A 9 inch side tube houses a second eyepiece which may be focused independently. Contains a fully moveable pointer for pinpointing structures. Price £21.28
CCTV Adapters
Simple - Attaches to the lens mounting of all CCTV cameras and inserts into the eyetube of any monocular, binocular or trinocular compound microscope Price £13.62
Advanced - For monocular and trinocular eyetubes only. The unit contains a reducing lens which restore the field of view to cover approximately the same area as standard x10 widefield eyepieces. Slides over the microscope eyetube and screws into the CCTV lens mount. Price £125
Dark Ground Condensers
Standard fitting dark ground condensers either dry for magnification upto x400 or oil immersion for x1000 magnification
Dry - Price £51.06
Oil - Price £59.57
Photomicrography Attachments
Attaching a 35mm SLR camera back is relatively straightforward for a monocular microscope with a standard eyetube. The attachment fits over the eyetube and connects to the camera back by a converting ring (T2 ring) to make it suitable for your camera make. A special eyepiece is also required termed a photoeyepiece Three items are therefore needed:
Photomicrography attachment Price £17.87
T2 ring (state camera make in shopping cart) Price £7.66
Photoeyepiece Price £22.13
Parallax Focusing Photography Attachment
Suitable for all trinocular and upright monocular microscopes. The unit allows focusing of the specimen and camera image through the parallax focus periscope. This avoids the need to focus directly through the camera back using its frosted glass viewing screen, and therefore gives a much clearer image with which to achieve optimum focus. The picture framing marks can be focused by the adjustable periscope front lens and the object focused by the microscope controls which results in a sharp image at the plane of the film in the camera back. Fits all standard eyetubes.
Price £80.85
Demonstration Attachment
A teaching attachment for all monocular, binocular and trinocular microscopes. The unit consists of a double eyepiece arrangement. The primary viewing eyepiece fits into the microscope eyetube and is clamped in place, A 9 inch side tube houses a second eyepiece which may be focused independently. Contains a fully moveable pointer for pinpointing structures. Price £21.28
CCTV Adapters
Simple -
Advanced -
Dark Ground Condensers
Standard fitting dark ground condensers either dry for magnification upto x400 or oil immersion for x1000 magnification
Dry -
Oil -
