Visual monitoring of production QC

Brunel Microzoom

The Brunel Microzoom has been specifically developed for those wishing to use CCTV with monitor visualisation of image as an alternative to direct use of a microscope. This is an ideal application for electronics and other uses that require either the low power scanning of  large areas or reworking and manipulation of components, particularly when used with an HDMI camera that will provide a fast frame rate on a monitor or TV allowing very smooth moving images.


There are potentially seven components to the system:





















Microscopes from Brunel UK Ltd

Field and Pocket Microscopes

Low power Stereomicroscopes

Non Zoom Stereomicroscopes

Gemscopes

Long Arm Stereomicroscopes

Video Stereomicroscopes

Zoom Stereomicroscopes

Stereomicroscopes

Pocket Microscopes Low power microscopes Non Zoom Stereos Gemscopes Long arm stereomicroscope Spare Zoom stereomicroscopes
Used Contact Us

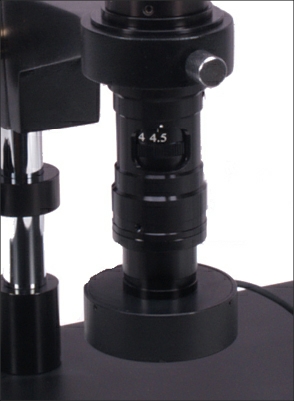

Zoom Microscope body


The zoom microscope body has a zoom range of 0.7x to 4.5x. This will provide an overall magnification range with a 14” screen of x15 to x100.


The working distance of the unit is 95mm with the x1 objective which is supplied as standard.

CCTV Adapter


There are potentially four CCD adapters which attach the microscope body to the camera of choice. x0.5, x1 and x2. The field of view reduces as the magnification factor of the CCTV adapter increases. We supply the units as standard with the x0.5 adapter which gives the largest field of view.




Objectives


The Microzoom is supplied with a x1 objective as standard. Additional objectives are available with working distances as shown below.

0.5x

170mm

0.75x

110mm

1.5x

45mm

2.0x

35mm

Microscope stand


The Microzoom can be supplied on either of the two plain bases shown below or on any of the long arm systems that we have available in our long arm stereomicroscopes range stereo microscopes.


Long arm stands

Camera


If the Microzoom is used for viewing moving objects, we would recommend an HDMI unit. Digital streaming cameras also have their place. We would be pleased to advise.

Tel:01249 462655

Email: mail@brunelmicroscopes.co.uk


Digital Camera Options

Screen


There are three options for displaying the image. When used with an independent camera the choice will depend on the type.  HDMI cameras would require a Monitor or TV screen with an HDMI input port. This would also be the case for a digital SLR camera with an HDMI out option (Canon, Nikon etc). Both types of HDMI output cameras could of course be directly coupled to a digital projector with an HDMI input port.


Digital streaming cameras would need a laptop or PC with USB 2.0 or 3.0 port.


An effective alternative would be to use one of our Microscope Digital Screens that have an inbuilt camera. These can attach directly to the Microzoom and have integrated software allowing video and still image capture and manipulation


Microscope Digital Screens

Lighting


The Microzoom can be fitted with a specific ring light as shown in the images below. However there are many other lighting options including a transmitted light source and the choice will depend on the application.


Lighting Options


Price Examples


Price: Microzoom unit only x0.5 CCD adapter & x1 objective - £181.67 + vat

          Microzoom as above complete with plain base - £276.60 + vat

          Microzoom Ring Light - £58.33 + vat

          Microzoom plain stand with dual light system - £421.28 + vat

          Microzoom single pole long arm system with ring light - £495.83 + vat

          Microzoom with Brunel Work Screen £929.17 + vat

          HDMI Camera - £195 + vat

          Microzoom CCTV x1 adapter - £40 + vat

          Microzoom CCTV x2 adapter - £48.33 + vat

          Microzoom Objective 0.5x - £50 + vat

          Microzoom Objective 2x - £50 + vat

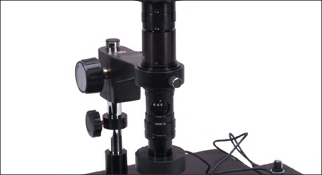

Brunel Microzoom with Ring Light

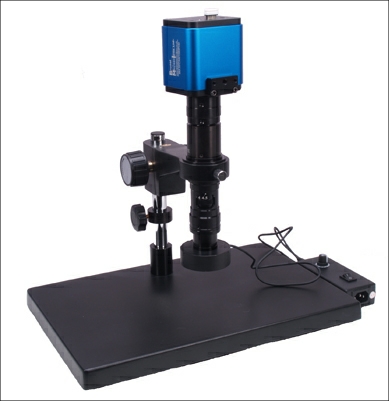

 Microzoom Microscope on plain stand

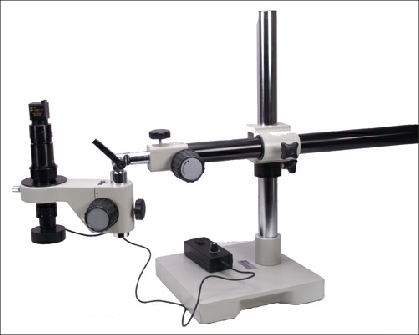

Brunel Microzoom with Single Pole Long Arm

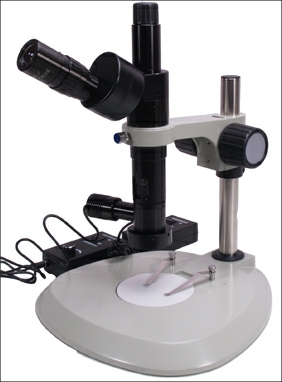

Microzoom Plain stand with Dual light


CCTV Couplers

x0.5

x1

x2

Objectives

Working Distance

Magnification

Field of View

mm

Magnification

Field of View

mm

Magnification

Field of View mm

0.5x

198mm

10x - 68x

35 - 5

20x - 135x

17.6 - 3

41x - 270x

8.8 - 1.3

0.75x

131mm

15x - 101x

23.5 - 3.6

30.6x - 202x

12 - 1.8

61x - 405x

6 - 0.9

1x

95mm

20x - 135x

17.6 - 2.7

41x - 270x

9 - 1

81.6x- 540x

4 - 0.7

2x

46mm

41x - 270x

8.8 - 1.3

81.6x - 540x

4 - 0.7

163x - 1080x

2 - 0.3

The table above shows the combined effect of the various combinations of C Mount Couplers and the Objectives on the zoom magnification range and the field of view. These may vary to a degree depending on the camera chosen and its chip size.

Microzoom with Brunel Work Screen

Brunel Work Screen
