Our very popular budget long arm stereo

BM1 Long Arm Stereomicroscope

The BM1 is a budget priced long arm stereomicroscope. The stereo head is supported at the end of an extended horizontal arm which may be clamped to allow viewing at any convenient angle. The heavy stable base acts as a counterbalance, allowing the microscope head to be used at the maximum extension of the arm arrangement.


The stereohead has an integral rack and pinion focus system with an adjustable clutch system which controls the tightness of the mechanism. The BM1 is designed to be used with construction and quality control and the position and comfort of the operator is an important feature. The instrument is available with either upright or 45° angled eyetubes.


The BM1 has an in built LED light source on a fully flexible goose neck arm that can angle the excellent bright spotlight into any position. The LED lighting is heat gain free which overcomes criticisms of the earlier models with halogen light units that became very hot when used for any length of time.The base unit contains a 12volt transformer system with on/off switch and fuse.


The long arm has a knuckle joint at its mid point which allows the angle of the stereohead to be varied. The head can also be rotated about the long arm so that the microscope can be use to view objects in any plane.


The BM1 has an excellent optical performance and the eyetubes have inter distance and independent focus adjustments. x10 widefield eyepieces are fitted as standard and with x1 and x2 objectives pairs gives the option of x10 and x20 magnification. This can be extended by the use of alternative eyepieces and an auxiliary x3.5 objective to give a potential magnification range of x5 to x70.


Technical specification














Field of view 20mm (at x10 magnification).

Working distance 230mm (at x10 magnification).

Dimensions 390 x 130 x 390mm  Weight 6 kg approx.


Price BM1 Long Arm stereomicroscope 45 degree eyetubes - £192.50 + vat

Price BM1 Long Arm stereomicroscope upright eyetubes - £192.50 + vat

x5 widefield eyepiece (pair)                      BM1-01

£38

Photography attachment (SLR)                BM1-06

£22.50

x15 widefield eyepiece (pair)                    BM1-02

£38

T2 ring                                                   BM1-07

£13

x20 widefield eyepiece  (pair)                   BM1-03

£38

CCTV adapter                                         BM1-08

£17

x10 measuring eyepiece                         BM1-04

£31.67

Transmitted light base                             BM1-09

£127

x3.5 objectives                                       BM1-05

£36.67

Aluminium carrying case                         BM1-10

£41.67

BM1 Long Arm Microscope Accessories


The range of accessories includes SLR and compact digital camera adapters and a transmitted light base.

Eyepiece

x5

x15

x20

Ojective




x1

x5

x15

x20

x2

x10

x30

x40

X3.5

X17.5

X52.5

x70

Brunel BM1 Long Arm

Brunel BM1 Long Arm with upright head

Brunel BM1 Long Arm with angled head

Microscopes from Brunel UK Ltd Pocket Microscopes Low power microscopes Non Zoom Stereos Gemscopes Zoom stereomicroscopes Measuring Long arm stereomicroscope

Stereomicroscopes

Pocket Microscopes Low power microscopes Non Zoom Stereos Gemscopes Zoom stereomicroscopes Spare Measuring

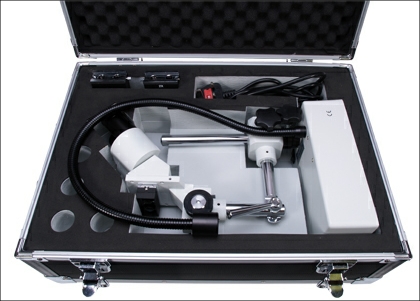

Aluminium case fits both models
