Metallurgical Microscopes:

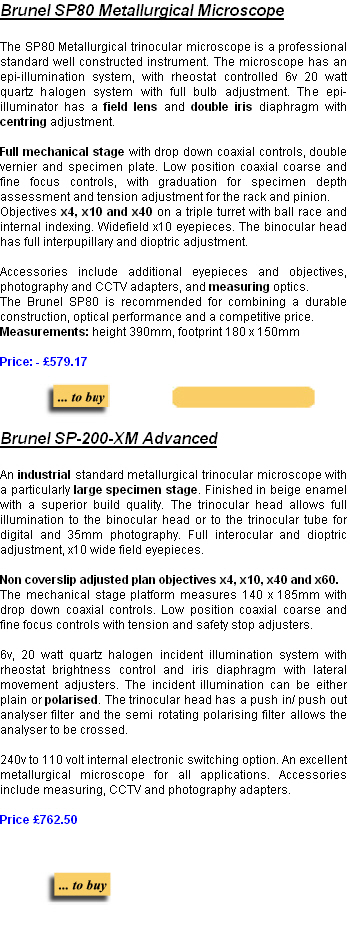

Brunel SP80 Metallurgical Microscope
The SP80 Metallurgical trinocular microscope is a professional standard well constructed instrument. The microscope has an epi-illumination system, with rheostat controlled 6v 20 watt quartz halogen system with full bulb adjustment. The epi-illuminator has a field lens and double iris diaphragm with centring adjustment.
Full mechanical stage with drop down coaxial controls, double vernier and specimen plate. Low position coaxial coarse and fine focus controls, with graduation for specimen depth assessment and tension adjustment for the rack and pinion.
Objectives x4, x10 and x40 on a triple turret with ball race and internal indexing. Widefield x10 eyepieces. The binocular head has full interpupillary and dioptric adjustment.
Accessories include additional eyepieces and objectives, photography and CCTV adapters, and measuring optics.
The Brunel SP80 is recommended for combining a durable construction, optical performance and a competitive price.
Measurements: height 390mm, footprint 180 x 150mm
Full mechanical stage with drop down coaxial controls, double vernier and specimen plate. Low position coaxial coarse and fine focus controls, with graduation for specimen depth assessment and tension adjustment for the rack and pinion.
Objectives x4, x10 and x40 on a triple turret with ball race and internal indexing. Widefield x10 eyepieces. The binocular head has full interpupillary and dioptric adjustment.
Accessories include additional eyepieces and objectives, photography and CCTV adapters, and measuring optics.
The Brunel SP80 is recommended for combining a durable construction, optical performance and a competitive price.
Measurements: height 390mm, footprint 180 x 150mm
Price: -
Brunel SP-
An industrial standard metallurgical trinocular microscope with a particularly large specimen stage. Finished in beige enamel with a superior build quality. The trinocular head allows full illumination to the binocular head or to the trinocular tube for digital and 35mm photography. Full interocular and dioptric adjustment, x10 wide field eyepieces.
Non coverslip adjusted plan objectives x4, x10, x40 and x60.
The mechanical stage platform measures 140 x 185mm with drop down coaxial controls. Low position coaxial coarse and fine focus controls with tension and safety stop adjusters.
6v, 20 watt quartz halogen incident illumination system with rheostat brightness control and iris diaphragm with lateral movement adjusters. The incident illumination can be either plain or polarised. The trinocular head has a push in/ push out analyser filter and the semi rotating polarising filter allows the analyser to be crossed.
240v to 110 volt internal electronic switching option. An excellent metallurgical microscope for all applications. Accessories include measuring, CCTV and photography adapters.
Non coverslip adjusted plan objectives x4, x10, x40 and x60.
The mechanical stage platform measures 140 x 185mm with drop down coaxial controls. Low position coaxial coarse and fine focus controls with tension and safety stop adjusters.
6v, 20 watt quartz halogen incident illumination system with rheostat brightness control and iris diaphragm with lateral movement adjusters. The incident illumination can be either plain or polarised. The trinocular head has a push in/ push out analyser filter and the semi rotating polarising filter allows the analyser to be crossed.
240v to 110 volt internal electronic switching option. An excellent metallurgical microscope for all applications. Accessories include measuring, CCTV and photography adapters.
Price £761.70
BRUNEL MICROSCOPES LTD
Specialists in their Field
SP80 trinocular
All prices exclude VAT @ 17.5% which is
added to orders from within the EEC
added to orders from within the EEC
SP-200-XM
Large stage
Illumination
