Quality imaging with fluorescence lighting attachment options

Brunel BSL Stereomicroscopes

The BSL stereomicroscope combines superb optics with an excellent build quality. The microscope has a large base with a rack and pinion focus system throughout which adds significantly to the stability of the system. In addition there is a coaxial coarse and fine focus mechanism operated by a cylindrical roller guide giving a particularly smooth transition which is an ideal combination for photomicrography. The base measures 310 x 280mm and has specimen clips. The vertical effective movement of the stand focus block is an impressive 220mm


The microscope head itself is trinocular with the binocular eyetubes at an angle of 45°. The eyepieces themselves are extremely wide field with an exit diameter of 22mm, with a high eye point making them suitable for spectacle wearers. Each has individual dioptric control. The optical body has a streamlined shape with the zoom magnification controls set towards the back of the unit on either side. The objectives are planachromats and the zoom ratio of 1:9 gives a magnification range of x7 to x63 with a working distance of 110mm. The field of view range is 3.49 to 33.8mm.


The illumination system is LED. The incident lighting is placed behind the stereohead and its angle can be adjusted to suit the specimen type. The transmitted system has a translucent white dissection area. Both incident and transmitted lights are brightness controlled and can be used together or independently as required.


The BSL Zoom Stereomicroscope is a quality brightfield unit but can also be supplied with up to three fluorescence units as accessories. These simply clamp onto the bottom of the stereohead in the same way as a standard ring light. Each unit has a bandpass dichroic filter system which allows LED generated excitation wavelengths to illuminate the specimen and generated visible light to pass to the eyepieces. A UV blocking safety filter is attached to each unit. The BML can be supplied with any combination of these three units and priced accordingly.
















Price BSL on dual illuminated bright field stand - £998.33 + vat

Price BSL UV cube unit - £475 + vat

Price BSL G cube unit - £475 + vat

Price BSL B cube unit - £475 + vat


Brunel BSL Series Microscope Accessories



x15 widefield eyepiece                  BSL-01

£73.33

SLR camera  adapter                    BSL-06

£133.33

x20 widefield eyepiece                  BSL-02

£73.33

Stage micrometer                         BSL-07

£24.17

x25 widefield eyepiece                  BSL-03

£73.33

T2 ring state camera make            BSL-08

£13.33

x10 measuring eyepiece               BSL-04

£39.17

x1.5 objective lens                       BSL-09

£70.83

x0.5 objective lens                       BSL-05

£70.83

x2 objective lens                         BSL-10

£76.67

Online Shop

Whole blood analysis

Online Shop

Field and Pocket Microscopes

Low power Stereomicroscopes

Non Zoom Stereomicroscopes

Gemscopes

Long Arm Stereomicroscopes

Video Stereomicroscopes

Inspection and Measuring

Stereomicroscopes

Pocket Microscopes Low power microscopes Non Zoom Stereos Gemscopes Long arm stereomicroscope Spare Measuring
Used Contact Us

IMXZ Series

BMZ Series

Zoom Stereos

BSR Series

BSR Stereos

BST Series

BST Stereo IMX Stereo

BMSZ Series

Zoom Stereos

UV,B and G Fluorescence Units

Brunel BSL Coarse and fine focus stand

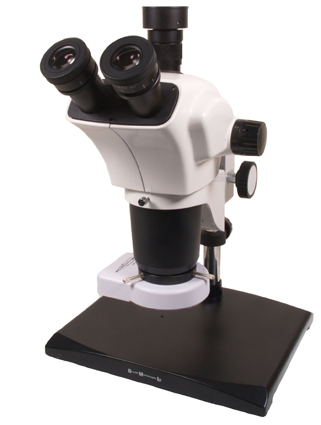

Brunel BSL Fluorescence Unit

Brunel BSL LED Trinocular

Brunel BSL LED stand

Brunel BSL Dimensions

Autofluorescence cuttlefish palate x28

Autofluorescence Marine Polyzoa


Excitation wavelength

Pass wavelength

UV Cube

330nm - 400nm

425nm

G Cube

460nm - 550nm

590nm

B Cube

420nm - 485nm

515nm
