Price: BMZ Plain stand ST1 - £737.50                                                      Price: BMZE Plain stand ST1 - £766.67


          BMZ Dual LED illumination stand ST2 - £861.67                                      BMZE Dual LED illumination stand ST2 - £891.67


          BMZ Double boom long arm ST3 - £1122.50                                            BMZE Double boom long arm ST3 - £1155.50


          BMZ Spring loaded extra boom long arm ST4 - £1214.17                       BMZE Spring loaded extra boom long arm ST4 - £1244.17


          BMZ Bench clamp long arm ST5 - £847.50                                              BMZE Bench clamp long arm ST5 - £877.50


          BMZ Fine focus LED stand ST6 - £962.50                                                 BMZE Fine focus LED stand ST6 - £992.50








Versatility in magnification, illumination and stand options

Brunel BMZ Stereomicroscopes

The BMZ range of trinocular stereomicroscopes represents a modular approach in a series of instruments offering quality optical performance with versatility in magnification, illumination and stand options. Designed and constructed in a style comparable to the market leaders, the BMZ series represents a modern approach at an extremely competitive price. The long arm versions incorporate a range of stand options.

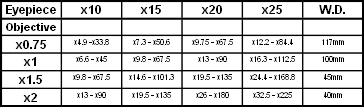

The BMZ has a magnification range of x6.5 to x45, and the BMZE has an extended magnification range of x10 to x65 both can be extended with additional eyepieces and auxiliary objective lenses. The charts below show the magnification options with the resulting field of view and working distance. Working distance will decrease with the use of auxiliary lenses as shown, although the useable working distance remains constant for each objective  irrespective of the position of the zoom control. Both microscopes are supplied with the x1 objective and SWF x10 eyepieces as standard. The interpupillary distance adjustment range is 55mm to 75mm. A wide range of accessories is available which are common to both the BMZ and BMZE apart from the photography and camera adapters which are listed separately..


BMZ Stereohead statistics















BMZE Stereohead Statistics















BMZ stand options


ST1

Plain stand with pole coarse focus and rack and pinion fine focus.


ST2

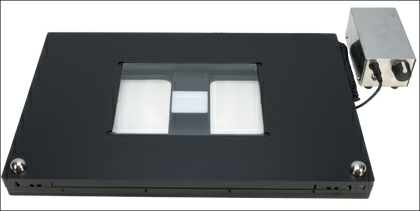

LED illumination stand with rheostat brightness control of incident and transmitted illumination. Pole stand for coarse focus adjustment. This is a low level base hardly any thicker than the plain stand (ST1)


ST3

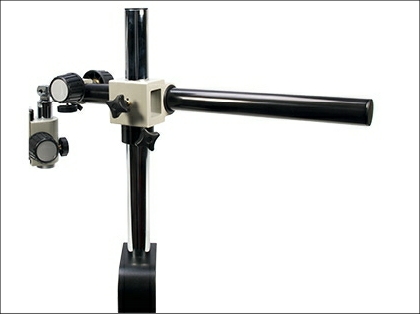

Double boom long arm heavy duty base, with a ball bearing gliding movement. Recommended for stability with long reach


ST4

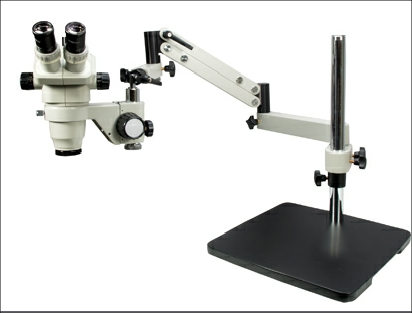

Long range spring loaded extra boom arm with heavy duty base. Recommended for extended reach use.The unit can be adapted for extra long use and moderate reach use depnding on the configuration selected at any particular time.


ST5

Bench clamp long arm that will attach to the edge of any normal thickness bench. Alternatively this unit can be supplied attached to its own ‘bench top’ which is a rectangular block board covered in laminate.


ST6

LED fine focus stand. This is an extremely versatile stand with rheostat brightness control of LED incident and transmitted lighting. Coarse and fine focus with rack and pinion movement throughout the stand height. Ideal for smaller specimens that require accurate focus - particularly for photomicrography.





Brunel BMZ and BMZE  Accessories


The BMZ range has a wide range of accessories including ring lights, CCTV and SLR photography adapters. All accessories fit both the BMZ and BMZE apart from the CCTV and photography adapters.

x15 widefield eyepiece                   BMZ-01

£46.67

SLR Photography attachment BMZE     BMZ-10

£70.83

x20 widefield eyepiece                   BMZ-02

£46.67

Polariser/Analyser                         BMZ-11

£59.17

x0.5 additional objective lens ST1,3,4,5    BMZ-03

£45.00

Aluminium carrying case               BMZ-12

£100.85

x1.5 additional objective lens          BMZ-04

£45.00

Long arm gliding stage                  BMZ-13

£270.00

x2 additional objective lens            BMZ-05

£45.00

CCTV adapter  BMZ                      BMZ-14

£56.67

SLR Photography attachment BMZ    BMZ-06

£70.83

Fluorescent Ringlight ST1,3,4,5      BMZ-15

£73.33

T2 ring (state camera make)          BMZ-07

£13.33

LED Ringlight ST1,3,4,5                BMZ-16

£119.17

Mechanical stage attachment        BMZ-08

£182.50

CCTV adapter BMZE                     BMZ-17

£56.67

x10 measuring eyepiece                BMZ-09

£41.67

Stage micrometer                         BMZ-18

£24.17

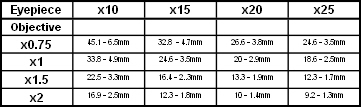

Eyepieces





Working distance



Objective

SWF x10

WF x15

WF x20

Field of View

Magnification

Field of View

Magnification

Field of View

Magnification

x0.75

45.1 - 6.5mm

x4.9 - x33.8

32.8 - 4.7mm

x7.3 - x50.6

26.6 - 3.8mm

x9.75 - x67.5

117mm

x1

33.8 - 4.9mm

x6.6 - x45

24.6 - 3.5mm

x13 - x90

20 - 2.9mm

x13 - x90

100mm

x1.5

22.5 - 3.3mm

x9.8 - x67.5

16.4 - 2.3mm

x19.5 - x135

13.3 - 1.9mm

x19.5 - x135

45mm

x2

16.9 - 2.5mm

x13 - x90

12.3 - 1.8mm

x26 - x180

10 - 1.4mm

x26 - x180

40mm


Eyepieces





Working distance



Objective

SWF x10

WF x15

WF x20

Field of View

Magnification

Field of View

Magnification

Field of View

Magnification

x0.75

30.7 - 4.7mm

x7.5 - x48.8

21.3 - 3.3mm

x11.3 - x73.1

7.3 - 2.7mm

x15 - x97.5

117mm

x1

23 - 3.5mm

x10 - x65

16 - 2.5mm

x15 - x97.5

13 - 2mm

x20 - x130

103mm

x1.5

15.3 - 2.4mm

x15 - x97.5

10.7 - 1.6mm

x22.5 - x146

8.7 - 1.3mm

x30 - x195

45mm

x2

11.5 - 1.8mm

x20 - x130

8 - 1.2mm

x30 - x195

6.5 - 1mm

x40 - x260

40mm

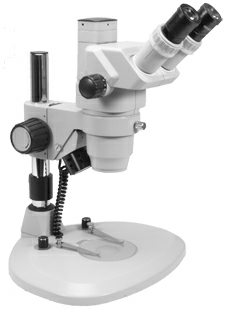

Brunel BMZE dual LED illumination stand (ST2)

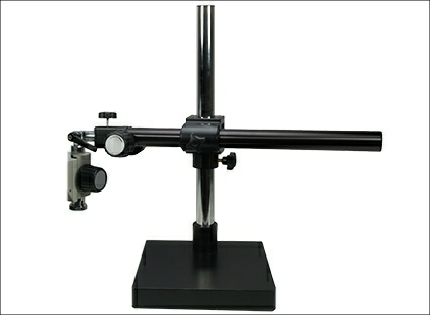

Brunel BMZ double boom long arm (ST3)

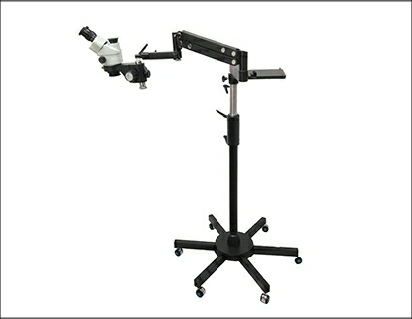

Brunel BMZ extra reach boom long arm (ST4)

Brunel BMZ plain stand (ST1)

Brunel BMZ bench clamp long arm(ST5)
