Quality optical performance and ideal for teaching

The BMDZ zoom stereo is a relative new comer to our range of zoom stereomicroscopes. This is a stereomicroscope that benefits from the latest in design technology and is available with a plain stand, two versions of LED illuminated stand and a long arm version.

BMDZ Stereohead Specification

The BMDZ is a full zoom trinocular stereohead with a magnification range of x7.5 to x45 with the x10 widefield eyepieces. The range may be extended to include x3.5 to x180 with additional objectives and eyepieces. The zoom mechanism is operated by side arm control knobs. The eyetubes have full interpupillary and dioptric adjustment and eyecups are supplied as standard. The unique features of this stereohead are the fact that the trinocular tube shares the images with the binocular eyetubes  which allows the microscope to be used at the same time as the image can be viewed on a monitor or PC by others. Providing the correct adapter is used the two images are parfocal which makes the BMDZ an ideal stereomicroscope for teaching and demonstration. In addition the zoom mechanism has a lock control  so that a magnification can be locked.

Stand Options -       The stereohead type can be supplied with one of seven stand options

• A plain stand without lighting. Pole coarse focus with a rack and pinion finer focus and a large working area with central dissection plate and stage clips (removable).  (SD1)
• A rheostat controlled LED incident and transmitted light source base. Both light systems can be used together or independently and have separate brightness controls. The stand has  a pole mechanism for coarse focus and a focus block with a rack and pinion mechanism. (SD2)

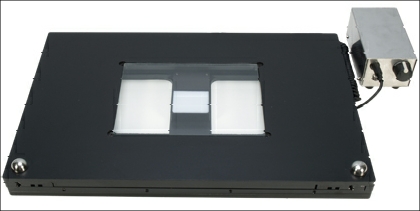

• A dark field/bright field option that has LED fibre illumination into the back of the base and an internal mirror system that allows easy transition between these two types of illumination. (SD3)

The BMDZ can also be supplied with a number of Long Arm base arrangements.

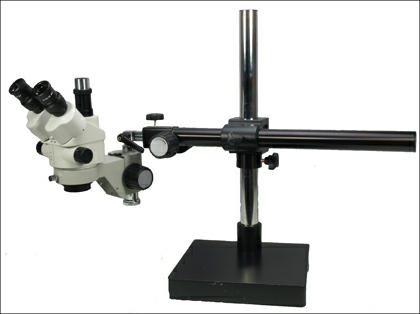

• Base SD4  consists of a large heavy stable base with a support column and boom arm.

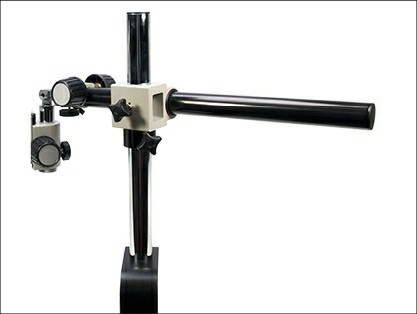

• SD5 is a similar arrangement but instead of the heavy base has a clamp system to fix to the edge of  a bench.

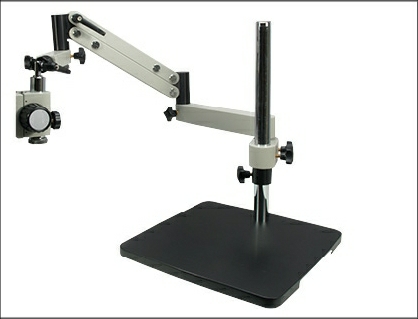

• SD6 is an extra reach long arm with a support system that enables the stereohead to be held in any position.

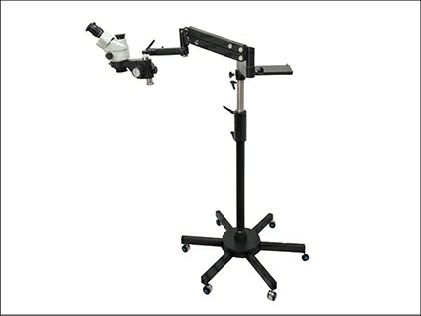

• SD7 is the extra reach long arm unit on a wheeled stand.

If supplied with stands SD1, SD4,5,6, or SD7 the stereohead can be fitted with an LED  ring light. A large Gliding Stage unit is also available for the long arm version. The Gliding Stage measures 450 x 300mm and moves freely in any direction making it ideal for rapid screening of large objects.

The circular ring light BMS-11 when placed on bases SD1 and SD2 will produce horizontal lighting that produces a virtual dark ground effect with any specimen placed in its centre. The circle of LED’s has segment and brightness controls.

Price BMDZ + Plain stand (SD1) £520.00 + vat

Price BMDZ + Illuminated stand (SD2) £591.67 + vat

Price BMDZ + Dark Field/ Bright Field Base (SD3) £1141.67 + vat

Price BMDZ + long arm base (SD4) £888.33 + vat

Price BMDZ + bench clamp long arm (SD5) £970.83 + vat

Price BMDZ + extra length spring loaded long arm (SD6) £1137.50

Price BMDZ + extral length long arm on wheeled base (SD7) £1458.33
