Provides WiFi images to iphones, iPads, Android and Laptops
The Brunel DM7 WiFi microscopy camera is the latest introduction to our range of photography units for microscopes. The Image View software provided with our cameras for PC’s is now well established, but it does need a USB port for download. However we now have a free App that will allow iPads, iPhones and Android to access the same potential.
The Brunel WiFi DM7 camera will fit all our own make monocular, binocular and trinocular microscopes by using a standard CCTV adapter which connects the camera directly to the microscope.
When WiFi output is available, this camera is used as a WiFi camera and can connect to smart phones, pads, Android and Windows platforms.
On the other hand when USB output is available it can be used as a USB camera and can support UVC standard. It can be used with stereomicroscopes and compound microscopes, monocular, binocular and trinocular. However to attach the camera to any microscope it needs the CCTV adapter.
Technical Spec:
- Sony Starvis back illuminated CMOS sensor
- Pixel (um) 2.9 x 2.9
- Resolution 50@1920 x 1080 (WiFi and USB)
- Whole area white balance
- Ultra-
fine colour engine - Still picture and movie
- Spectral Range 380-
650mm (with IR- cut filter) - Power supply USB charger (supplied), or USB port from PC
Digital Microscope Cameras
Price: Brunel DM7 WiFi Microscopy Camera -
Price: CCTV adapter for WiFi Camera -

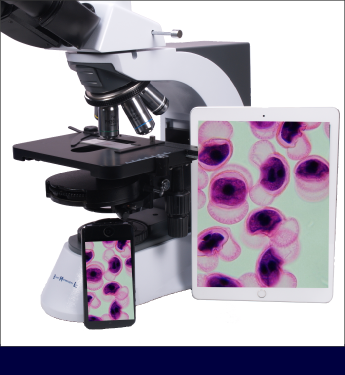

Brunel DM7 WiFi iPhone and iPad
Stained Pine Pollen x400

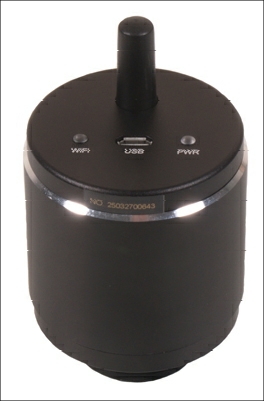

Brunel WiFi DM7

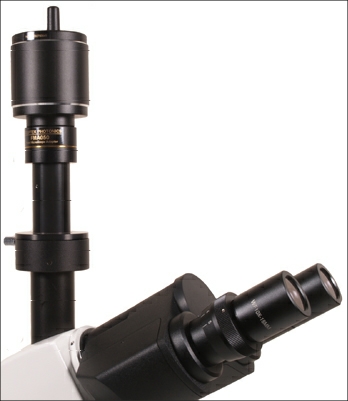

Brunel WiFi DM7 on Trinocular Compound

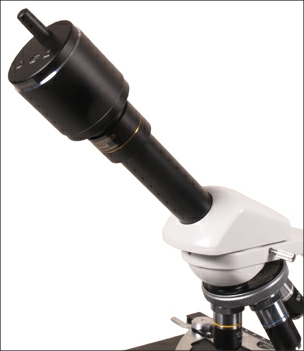

Brunel WiFi DM7 on Monocular

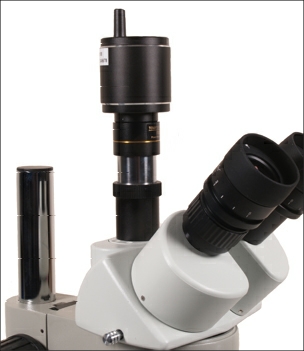

Brunel WiFi DM7 on Stereomicroscope
